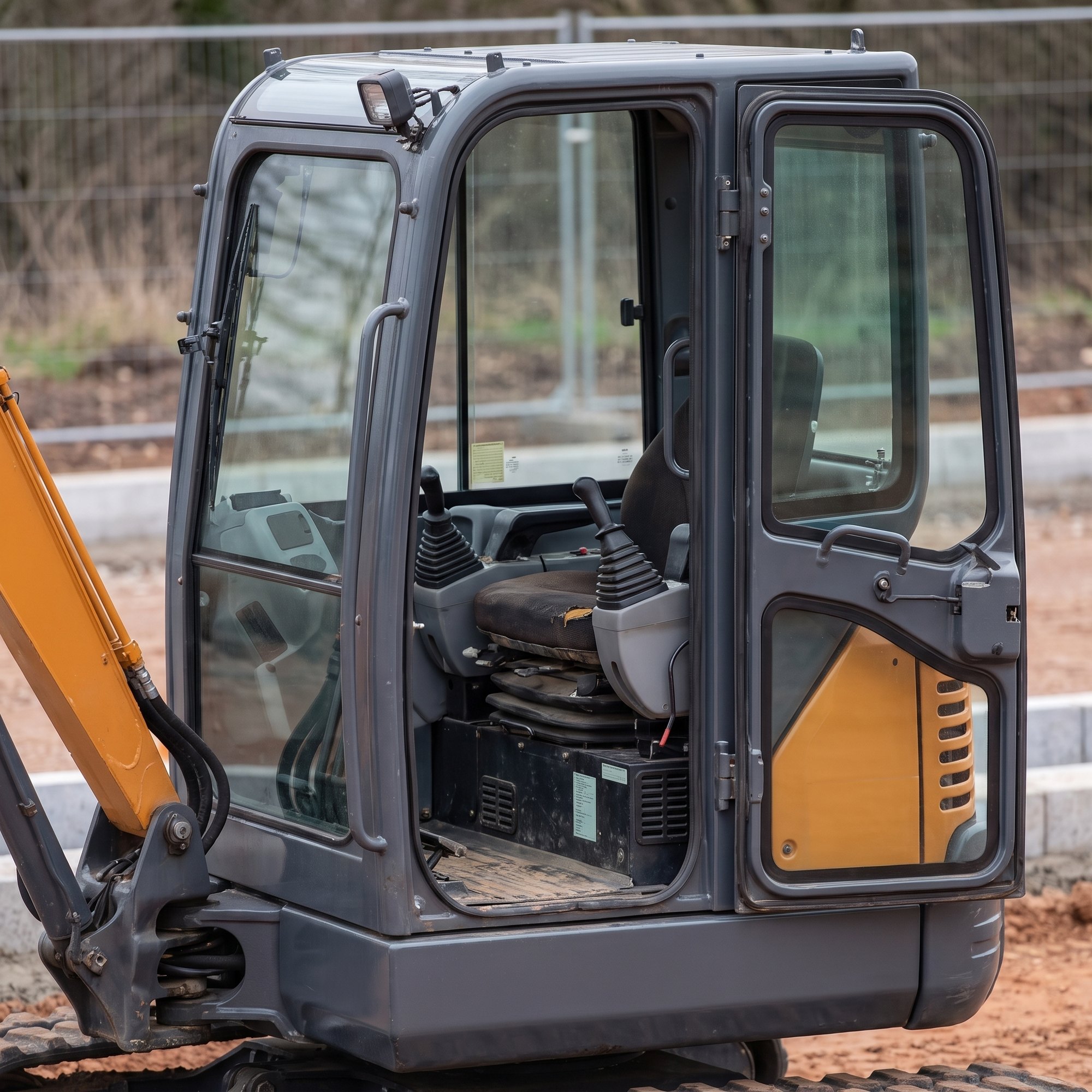

The MX-35 is the largest machine we stock and the one to buy if you are working outdoors through the winter. The cab is fully enclosed, with a heater, air conditioning, a suspension seat, a lockable door and glass on three sides – which is the difference between a productive January and a lost one.

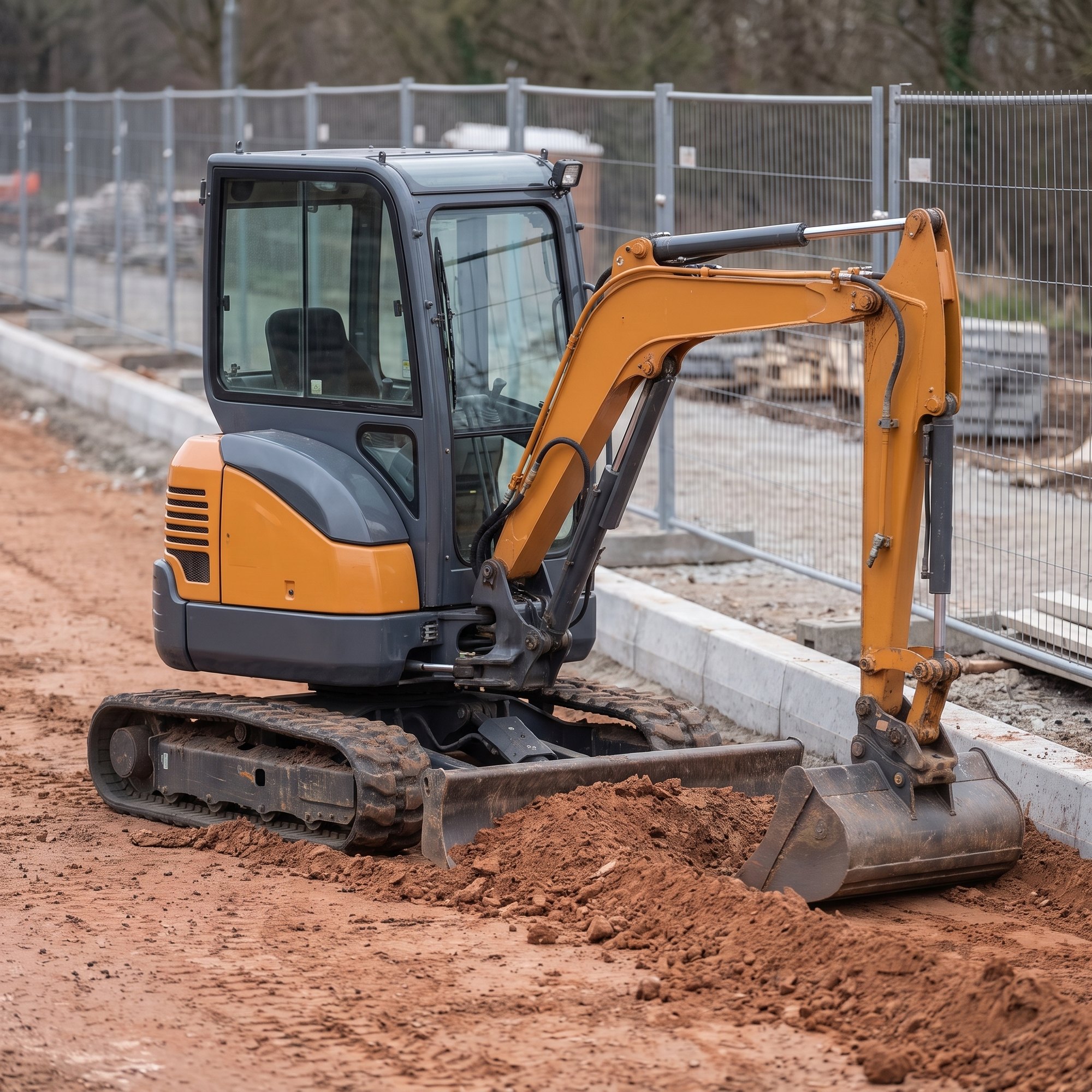

Operating weight is 7,716 lb and it digs 11 ft 2 in. deep with 18 ft 8 in. of reach at ground level, so it handles house footings, deep drainage, basement digs and pond work that the smaller machines cannot reach. A 33 hp four-cylinder diesel drives the hydraulics, and the auxiliary circuit has a proportional control on the joystick, which matters for running an auger or a breaker at part speed. It ships with a 24 in. digging bucket, an offset boom and a dozer blade.
Specifications
| Operating weight | 7,716 lb (3.5 t) |
|---|---|
| Track width | 68 in. fixed |
| Maximum dig depth | 11 ft 2 in. |
| Maximum reach at ground level | 18 ft 8 in. |
| Engine | 33 hp four-cylinder diesel |
| Operator station | Enclosed cab, heater and air conditioning |
| Bucket supplied | 24 in. digging bucket, pin-on |
| Pin diameter | 1.97 in. (50 mm) |
| Width between mounting ears | 7.9 in. (200 mm) |
| Auxiliary hydraulic flow | 13.2 gpm, proportional, fitted as standard |
| Undercarriage | Rubber tracks, fixed frame |
| Shipping dimensions | 197 x 76 x 106 in. on a skid |
Attachment fitment
This is the widest-pinned machine we sell: 1.97 in. (50 mm) pins, 7.9 in. (200 mm) between the ears. Every attachment in our Excavator Attachments collection ships with a pin and bush kit that covers 40 – 50 mm pins and 150 – 200 mm ears, so all five fit this machine – and with 13.2 gpm it is the machine that runs the 12 in. auger drive best.
Warranty and support
The warranty that applies is the manufacturer’s written warranty supplied with the machine. Ask us before you order and we will send you the exact terms – period, what is covered and what is not – in writing. Warranty work and wear parts are arranged through us at info@nestiques.com; we do not operate a dealer network.
Emissions and California
Ask us for the engine’s EPA emissions family number and its CARB status before you order if the machine is going to California, and we will send it to you in writing. WARNING: diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Looking after it: grease all pins daily, check the cab air filter monthly, and drain the water trap on the fuel filter every morning in winter.
This machine ships free to any address in the 48 contiguous states on a freight carrier: a flatbed or drop-deck truck, unloaded down ramps at the curbside with you or your driver present. At 7,716 lb it is beyond the rating of any liftgate, so ramp access and firm level ground are required. Dispatch takes 1 – 2 business days and transit a further 3 – 6. Unused machines can be returned within 30 days of delivery.
